Engineered for professionals who demand comprehensive eye, face, and respiratory protection, the Bossweld Tecmen PAPR Freeflow iMUX TM16 Welding Helmet Respirator is the ultimate solution for industrial welders. This state-of-the-art helmet offers unparalleled defense against hazardous welding environments while enhancing your visual performance and overall productivity.

Designed For Industrial Welders With Unmatched Safety

Precision Protection

• Comprehensive Defense:
  Safeguards against arc radiation, spatter, dust, pollutants, and fine particles.
• Continuous UV/IR Shielding:
  Provides reliable protection up to Shade DIN 16 at all times, ensuring you remain safe in any welding condition.

Enhanced Visual Performance

• Expansive Viewing Area:
  Features a large 97 x 62 mm lens that delivers an enhanced field of view, allowing for better situational awareness.
• ReaLens™ Technology:
  Offers true color visibility and reduced glare for clear, distortion-free imaging.
• Optical Excellence:
  Achieves an Optical Class rating of 1 / 1 / 1 / 1, ensuring the highest standards of clarity, diffusion, luminous transmittance, and angle dependence.

Advanced Features & Intelligent Technology

Filtration & Airflow System

• Multi-Layer Filtration:
  Utilizes a particle box filtration system with >99.97% efficiency to prevent toxic particles, soot, and contaminants from compromising your safety.
• Intelligent Airflow Management:
  Features auto-adjusting power and airflow that responds to filter blockage, with two selectable airflow rates:
  • Low speed: 170 L/min (6 CFM)
  • High speed: 210 L/min (7.4 CFM)
  • Dual shade range (5-8 / 9-13) easily adjusted via an internal dial knob.

Sensors & Controls

• Arc Sensors:
  Equipped with 4 independent arc sensors for precise detection of hazardous welding conditions.
• Control Features:
  Includes an external grind mode switch and an adjustable infinity dial knob for optimizing sensitivity and dark-to-light transitions.
  • Switching Speeds:
    • Light-to-dark: 1/25,000 seconds
    • Dark-to-light: 0.1–1.0 seconds

Power Supply & Durability

• Reliable Power:
  Powered by an integrated solar cell plus 2 x CR2450 lithium batteries (replaceable), delivering exceptional battery life:
  • Helmet: 4000 hours
  • Respirator: 9 hours (low speed), 5-6 hours (high speed)
• Robust Construction:
  Constructed from high-impact resistance nylon with Low Amperage TIG Rating (≥2 amps AC/DC) for dependable performance in rigorous industrial environments.

Certifications & Applications

Certifications

• Helmet:
  Complies with DINplus, CE, ANSI Z87.1, CSA Z94.3, AS/NZS 1337.1, and 1338.1 standards.
• Respirator:
  Certified under EN12941, AS/NS1716:2012 (Freflow V1) with a Class P3 particle filter.

Industrial Applications
Ideal for:

• MIG, TIG, and Stick welding
• Plasma cutting
• Grinding
• Polishing

Complete Package – What’s Included

• Auto Darkening Welding Helmet: (ADF815SG IMUX)
• Freflow Blower Unit: Comes with a waist strap and Li-ion battery
• Spare Cover Lenses:
  • Outside Cover Lenses x5
  • Inside Cover Lenses x2
• Additional Accessories:
  • Hose with Cover
  • Battery Charger
  • Shoulder Strap
  • Airflow Indicator

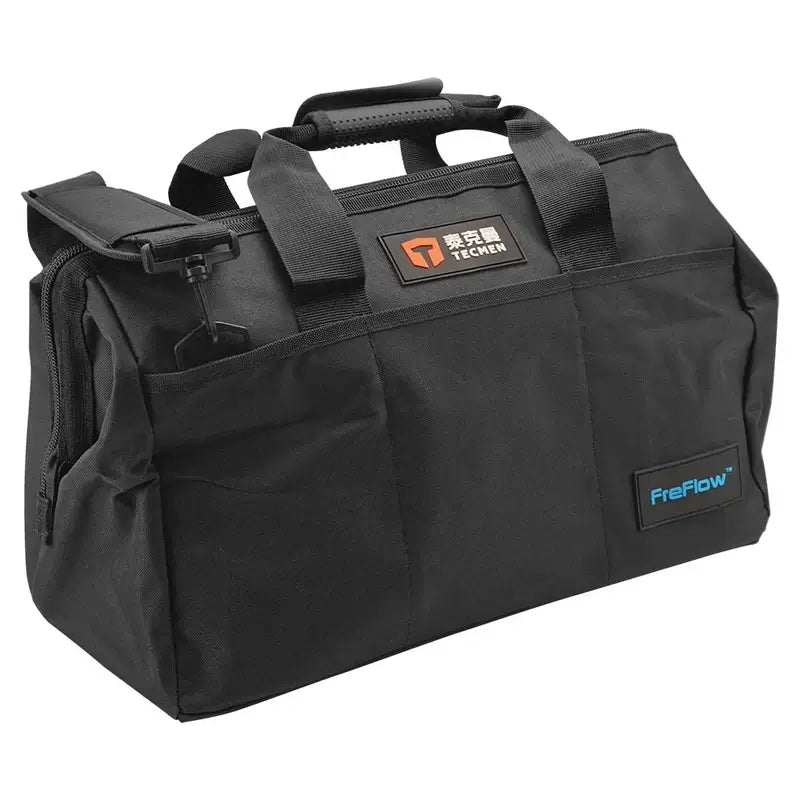

  • Carry Bag

In-Depth Respirator Specifications

Battery & Filter System

• Fast-Charging Li-ion Battery:
  Charges in 1 hour and provides:
  • 9 hours at low speed
  • 5-6 hours at high speed

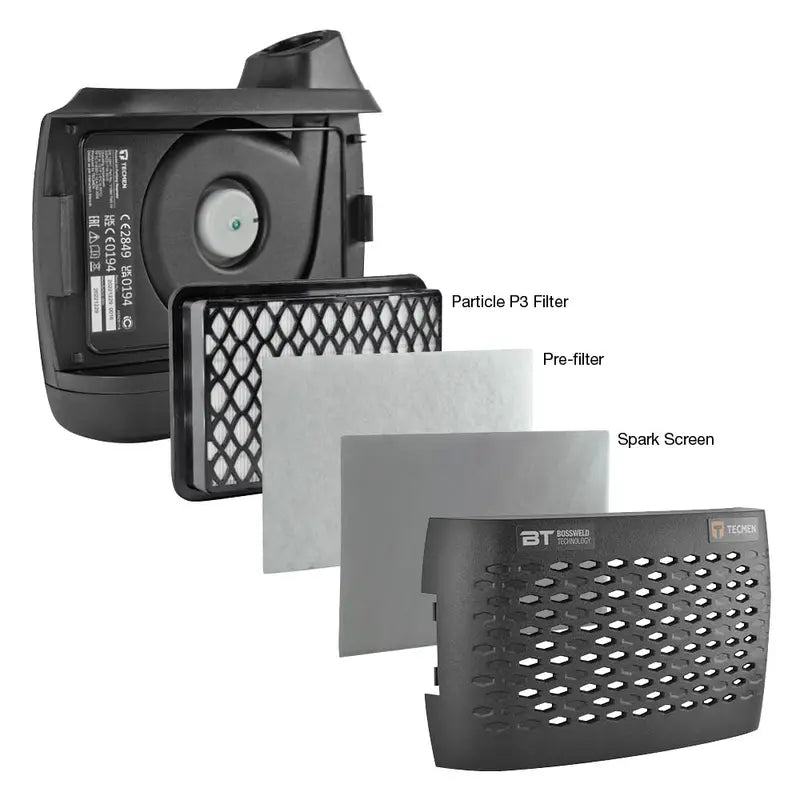

• Filter Technology:
  Equipped with a replaceable Class P3 particle filter, including a pre-filter and a stainless steel spark screen.

Weight & Environmental Tolerances

• Combined Weight:
  Blower unit plus battery weighs 1020g.
• Humidity Tolerance:
  • Operating: <90% RH
  • Storage: <85% RH

Warranty & Shipping Information

Warranty Coverage

• 2 years for the Auto Darkening Filter (ADF) & Blower Unit
• 1 year for the Blower Unit Battery

Shipping Specifications

• Net Weight: 5.6 kg
• Product Dimensions (L x W x H): 340 mm x 560 mm x 310 mm
• Shipping Weight: 5.000 kg
• Shipping Dimensions (L x W x H): 0.650 m x 0.500 m x 0.500 m
• Shipping Volume: 0.1625 m³
• Unit of Measure: Each (ea)

Additional Enhanced Features & Spare Parts Inventory

Real-Time Display Indicator

• Continuously monitors airflow, battery level, filter blockage, and particulate matter for real-time safety feedback.

Triple Alarm System

• Provides audible, visual, and vibration alerts to notify you immediately of low battery or blocked filters.

Ergonomic Design

• Features adjustable pivot headgear with a secure face seal for long-lasting comfort.
• Includes a specialized grinding mode with an integrated shade 5 lens for precise grinding tasks.

Spare Parts Inventory
