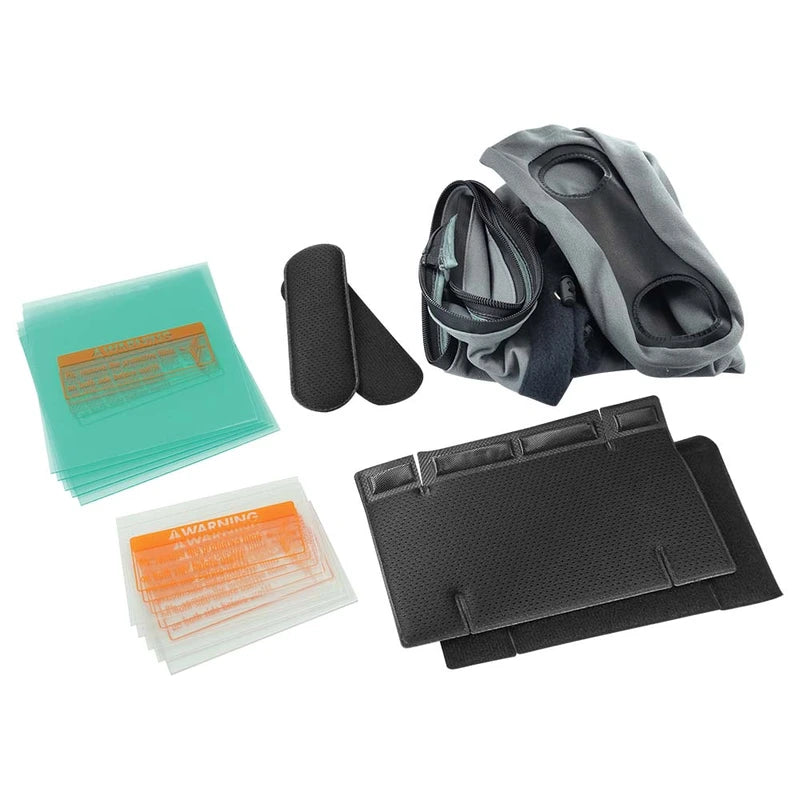

BT/Tecmen TM16 Welding Helmet Spare Parts Kit, including outer + inner lenses, protective covers, and headgear components.

BT / Tecmen TM16 Inner/Outer Lens (Pkt 5)

by BossWeld/Tecman
$10.15
Choose Lense Type

Notify me when back in stock

BT / Tecmen TM16 Inner & Outer Lens (Pkt 5) – Part No. 703201

Ensure uninterrupted safety and optical clarity for your IMUX TM16 Welding Helmet with the BT / Tecmen TM16 Inner Lens (Part No. 703202) and Outer Lens (Part No. 703201) replacement packs. These 5-packs are critical consumables designed to maintain the helmet’s compliance with global safety standards, providing dual-layer protection against contaminants, sparks, and arc radiation during welding, grinding, and metalworking tasks.

Key Details:

Inner Lens (Part No. 703202):

  • Part Number: 703202

  • Compatibility: Exclusively for the IMUX TM16 Auto-Darkening Welding Helmet (Part No. 703200).

  • Pack Quantity: 5 inner lenses per pack (PKL 5).

  • Function: Sits behind the auto-darkening filter (ADF815S6) to protect against internal fogging and particulate ingress.

  • Included in Standard Kit: The IMUX TM16 helmet includes 2 spare inner lenses (Part No. 703202) as part of its original packaging.

Outer Lens (Part No. 703201):

  • Part Number: 703201

  • Compatibility: Exclusively for the IMUX TM16 Welding Helmet (Part No. 703200) and FreFlow Respirator System.

  • Pack Quantity: 5 outer lenses per pack (PKL 5).

  • Function: Primary barrier against external sparks, spatter, and large particles.

  • Included in Standard Kit: The IMUX TM16 helmet includes 5 spare outer lenses (Part No. 703201) as part of its original packaging.

Technical Specifications:

  • Material:

    • Inner Lens: Polypropylene (chemical-resistant, anti-fog properties).

    • Outer Lens: Industrial polypropylene (high-impact resistance).

  • Certifications:

    • Both lenses comply with the IMUX TM16 helmet’s certifications: DINplus, CE, ANSI Z87.1, CSA Z94.3, AS/NZS1337.1, AS/NZS1338.1.

    • FreFlow Respirator System compliance: EN12941, AS/NZS1716:2012.

  • Optical Clarity:

    • Maintains the IMUX TM16’s EN379 1/1/1/1 optical class rating (highest grade for distortion-free vision).

  • Replacement Guidance:

    • Replace inner lenses when fogged or scratched to preserve visibility.

    • Replace outer lenses when damaged to ensure continuous protection against debris.

Safety & System Integration:

  • Dual-Layer Protection:

    • The Outer Lens (703201) works with the stainless steel Spark Screen (Part No. 703312) to block large particles.

    • The Inner Lens (703202) pairs with the FreFlow P3 Particle Filter (Part No. 703310) for >99.97% filtration efficiency.

  • Compatibility:

    • Both lenses integrate seamlessly with the IMUX TM16’s features: 4 independent sensors, grind mode switch, and Real.ens™ Technology for true-color vision.

Warranty & Support:

  • Warranty Note: Lenses are consumable items and not covered under the 2-year warranty for the ADF and FreFlow Blower Unit.

  • Ordering:

    • Sold as 5-packs (Part No. 703201 for outer lenses; Part No. 703202 for inner lenses).

    • Pair with the FreFlow Pre-Filter (Part No. 703311) and Extended Neck Protection Kit (Part No. 703220) for full system maintenance.

  • Support:

    • Available at www.bossweld.com.au.

    • Contact Dynaweld Industrial Supplies Pty Ltd at +61 2 8761 6500 for technical assistance.

Why These Lenses?:

  • Safety Compliance: Meet stringent global standards for welding PPE.

  • Optimal Workflow: Minimize downtime with easy-to-replace, pre-packaged lenses.

  • Cost-Effective: Bulk 5-packs ensure readiness for high-demand industrial environments.
